离心风机蜗壳流体设计注意事项

佛山市顺炫风机电有限公司

分享
QQ好友 微博 QQ空间 邮件

在风机流体设计中,为了达到噪声、风量和压力的最佳平衡设计,工程师需要不断积累经验。我们关注几个关键点:

蜗壳舌的设计非常重要; 许多人不理解这个关键点

渐开线中心距的比值应注意与电机中心点的关系

进风口与叶轮导向角的关系

Points to note in the volute fluid design of the external rotor single-inlet centrifugal fan - From 顺炫风®
Points to note in the volute fluid design of the external rotor single-inlet centrifugal fan - From 顺炫风®

蜗牛舌压力

Points to note in the volute fluid design of the external rotor single-inlet centrifugal fan - From 顺炫风
Points to note in the volute fluid design of the external rotor single-inlet centrifugal fan - From 顺炫风

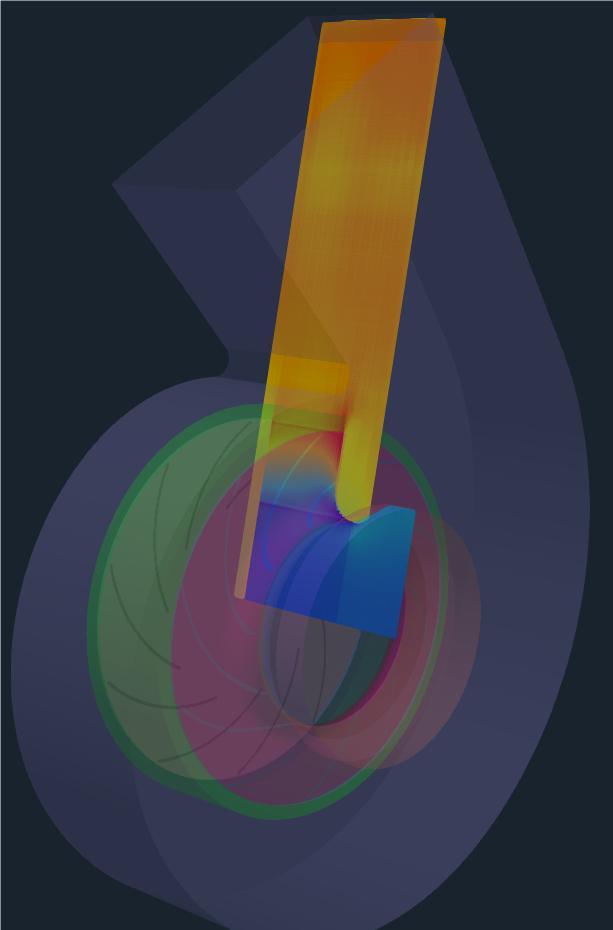

CAE

Points to note in the volute fluid design of the external rotor single-inlet centrifugal fan - From 顺炫风
Points to note in the volute fluid design of the external rotor single-inlet centrifugal fan - From 顺炫风

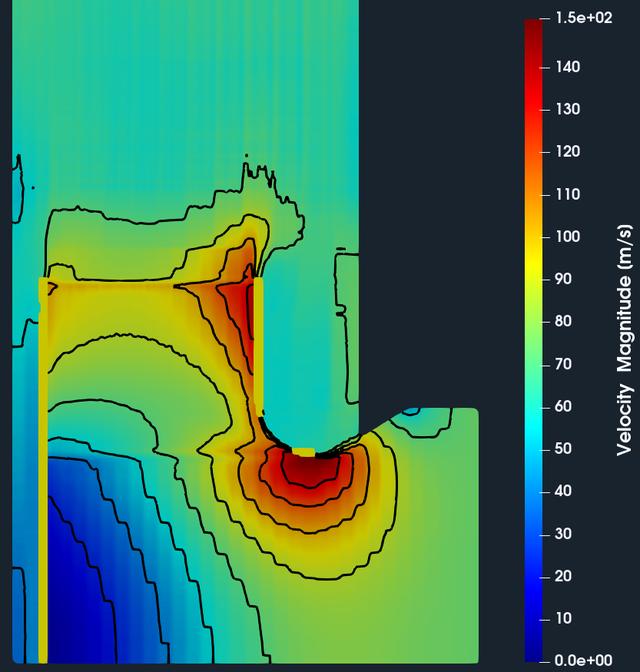

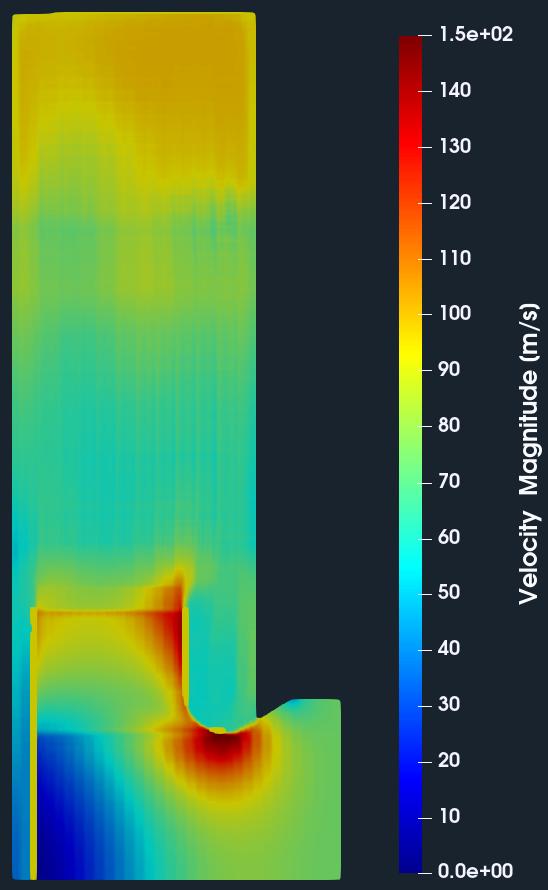

顺炫风_CFD

Points to note in the volute fluid design of the external rotor single-inlet centrifugal fan - From 顺炫风
Points to note in the volute fluid design of the external rotor single-inlet centrifugal fan - From 顺炫风

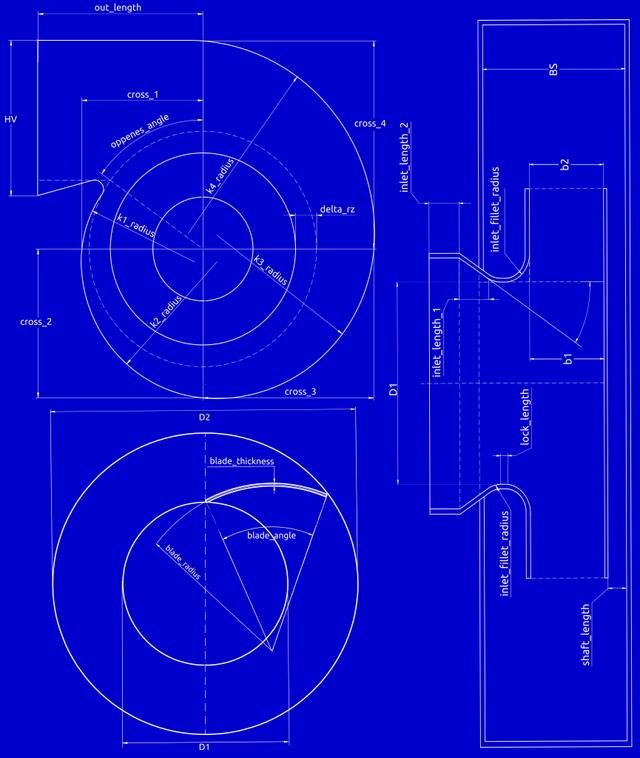

顺炫风_ 螺旋外壳设计参考图片

总体: 从上图中的参数,您基本可以掌握相关的设计要领。其余蜗壳尺寸可参考上述示意图。如果您有任何问题,请联系顺炫风。

常见问题

外转子单进风离心风机的蜗壳流体设计要关注哪些关键点?
主要关注四点:蜗壳舌的设计、渐开线中心距比值与电机中心点的关系、进风口与叶轮导向角的关系,以及蜗舌处的压力分布。这些因素共同决定了噪声、风量和压力三者的最佳平衡。
为什么蜗壳舌的设计特别重要?
蜗舌直接影响叶轮出口气流与壳体的相互作用,设计不当会引起回流和压力脉动,导致噪声增大和风量损失。它是许多工程师容易忽视、却决定风机性能的关键结构。
如何验证蜗壳设计是否合理?
顺炫风在开发中通过CAE仿真和CFD流体分析验证蜗壳型线与关键尺寸,再结合样机测试确认噪声与气动性能。其余蜗壳尺寸可参考其设计示意图选取,有疑问可直接联系顺炫风技术团队。
